Name: Dot 28 Wood Mounting modules
Brand: Georg Bechter Licht
SKU: GB168072_
Availability: InStock

Module Type

Mouting Ring

Clamping Ring

$0.00

Tax included.

Lead time

The wood mounting modules for SYSTEM DOT 28 bring the 28 mm light point into solid and suspended timber ceilings, either as a frameless opening or with a fine visible ring. Each module uses the DOT 28 bayonet, so the luminaire locks in from the front and can be removed just as easily for installation and maintenance.

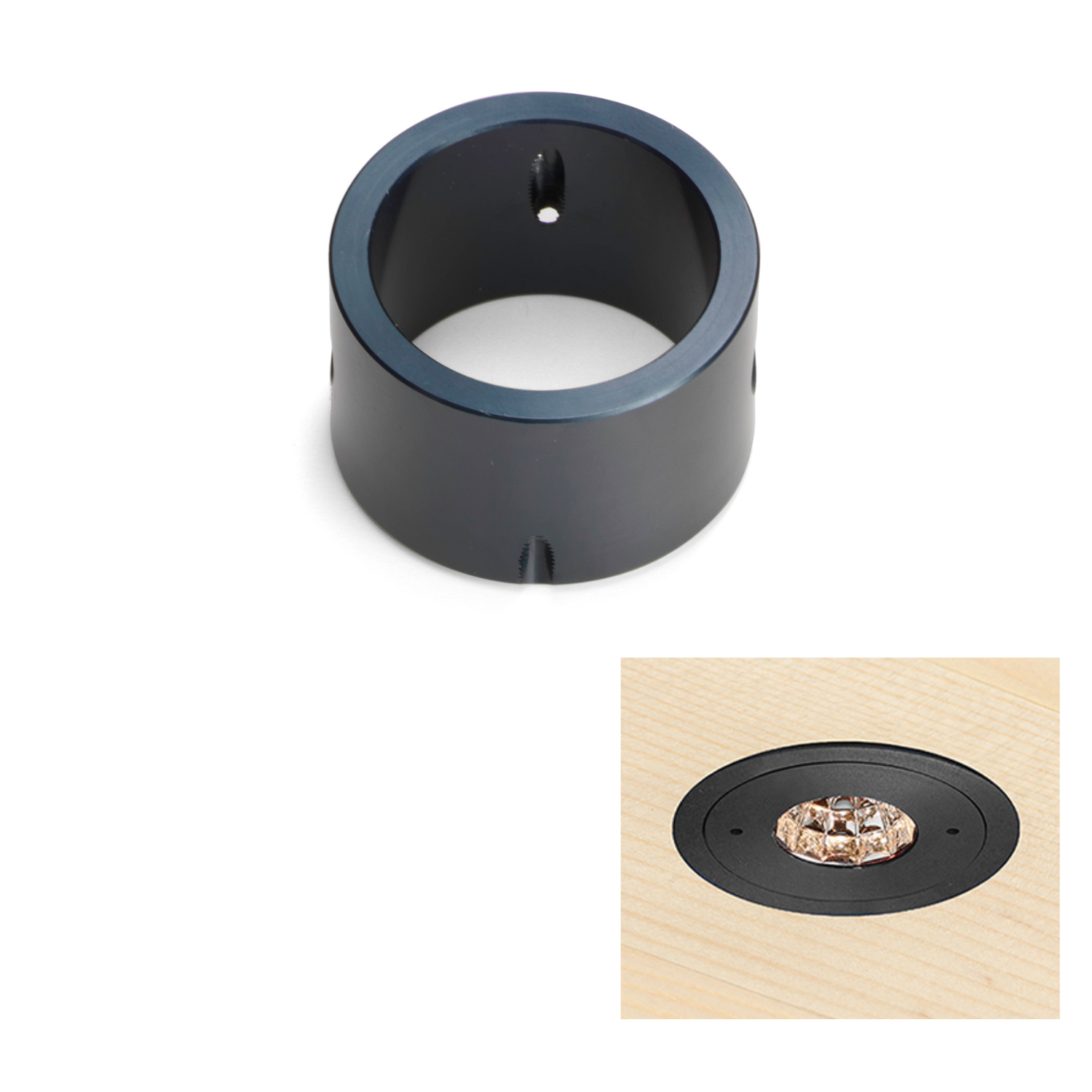

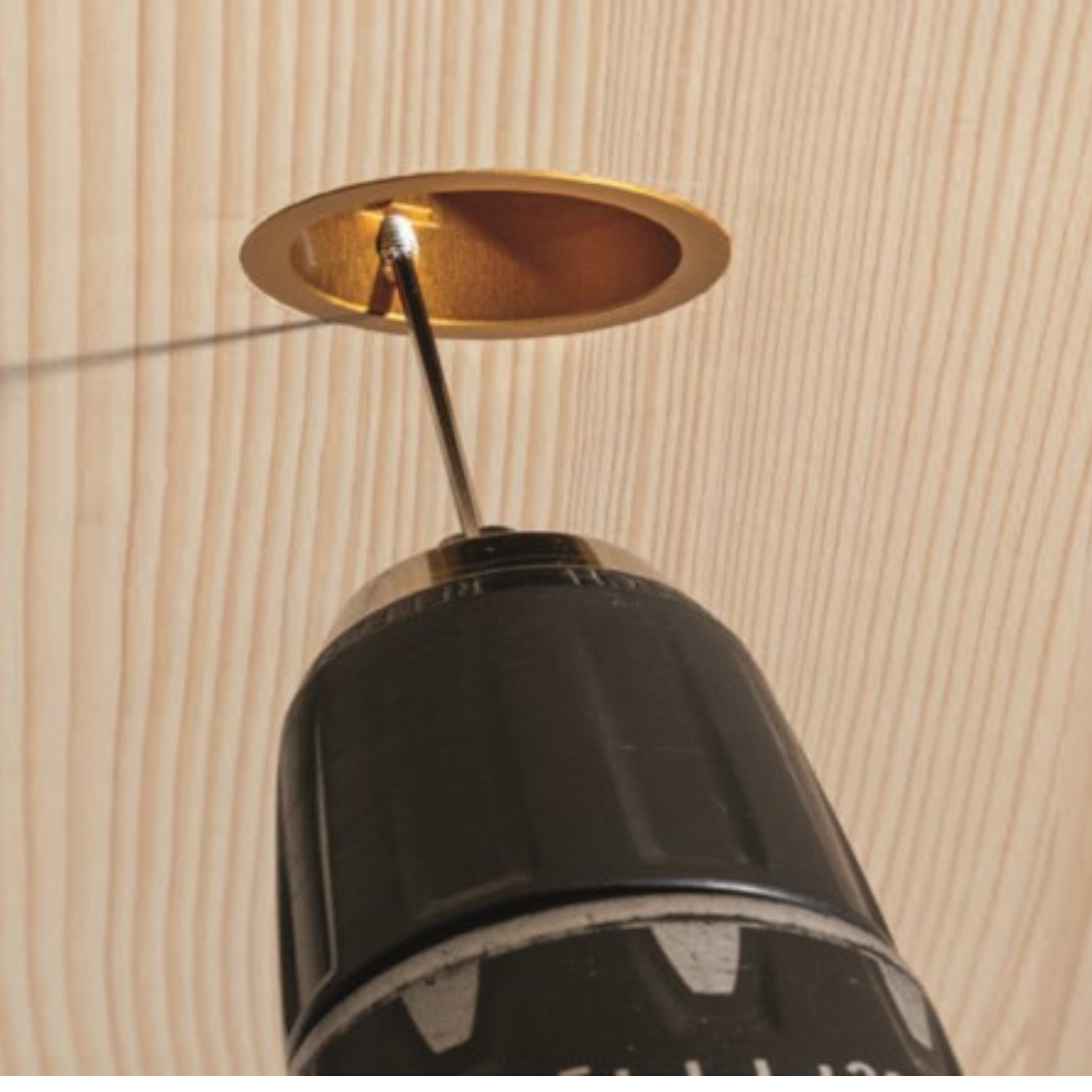

Mounting Ring 28. An on-site option drilled from below. A 35 mm hole is cut in boards at least 25 mm thick, and the ring is fixed flush with two set screws. The anodised ring stays visible on the underside of the ceiling.

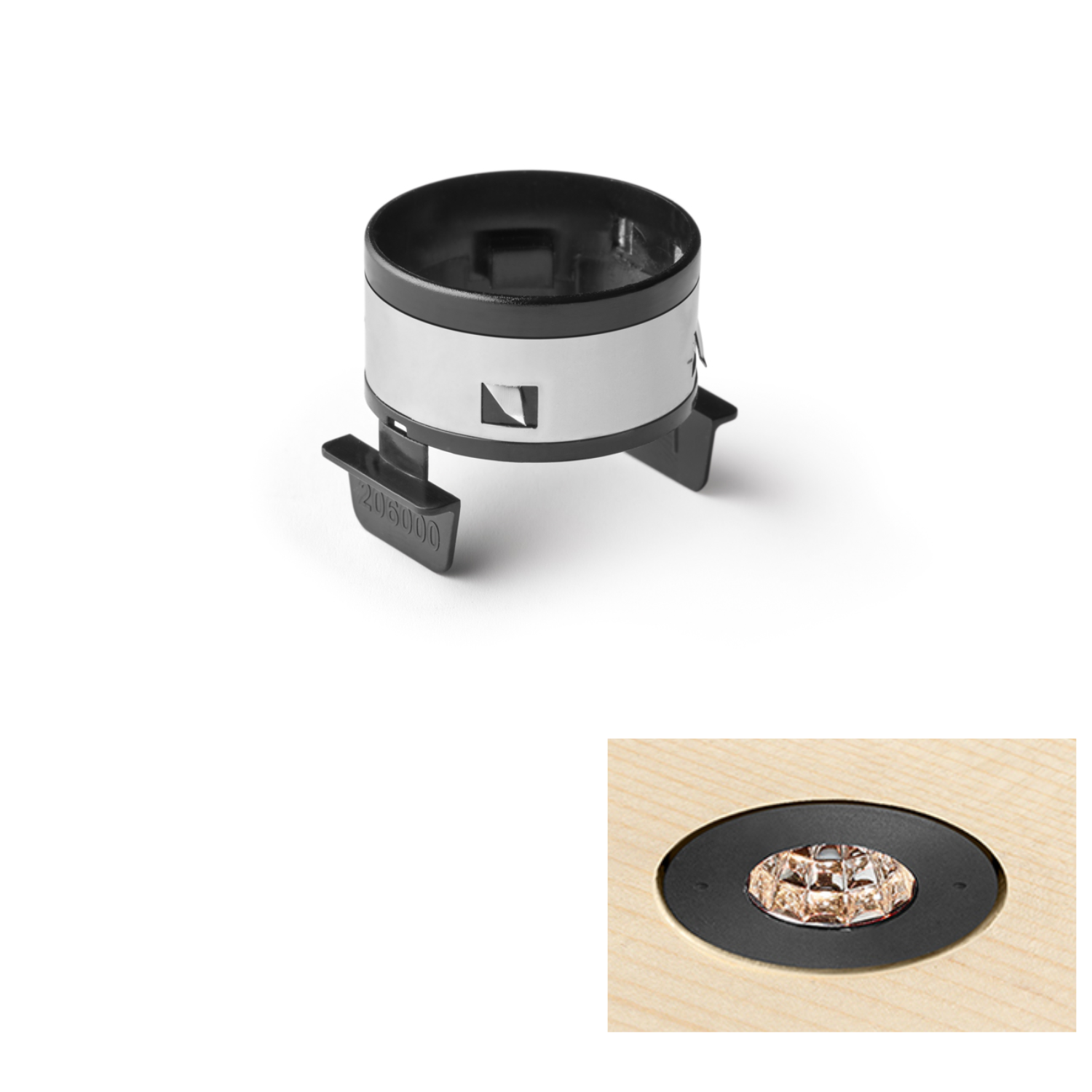

Clamping Ring 28 -For suspended timber ceilings where the opening should disappear. A 31 mm hole is drilled in boards at least 20 mm thick, and the sleeve is threaded in with the installation tool. The result is flush and frameless, leaving just a shadow gap.

For pricing or to configure a mounting solution, request a quote or contact our sales team.

Quantity

Backordered Products and Lead Times

If a product is backordered, a lead time will apply. Live stock levels and estimated lead times are displayed above the product description. Please note that lead times may vary by brand and product.

Lead times represent our best estimate of when goods will arrive at our Sydney warehouse and are not a guarantee of delivery on a specific date.

In many cases lead times can be improved with a dedicated express shipment. If you would like the most up to date information regarding lead times on a specific product, or have a deadline you need to meet please contact us.

In-stock items are typically dispatched within 1–3 business days. Shipping times to your location will vary depending on your address.

The estimated lead time begins from the moment your order is placed.

All product images are for illustrative purposes only and may vary slightly from the actual item received.

All orders are subject to Enlightened Living’s Terms and Conditions. Please refer to the links below for full details.

FAQs

Terms and Conditions

Enlightened Living Warranty

Looking for more information on lighting? Discover our beginner-friendly resources for practical lighting design advice and in-depth technical guidance

Lighting Design 101

Technical Lighting 101
